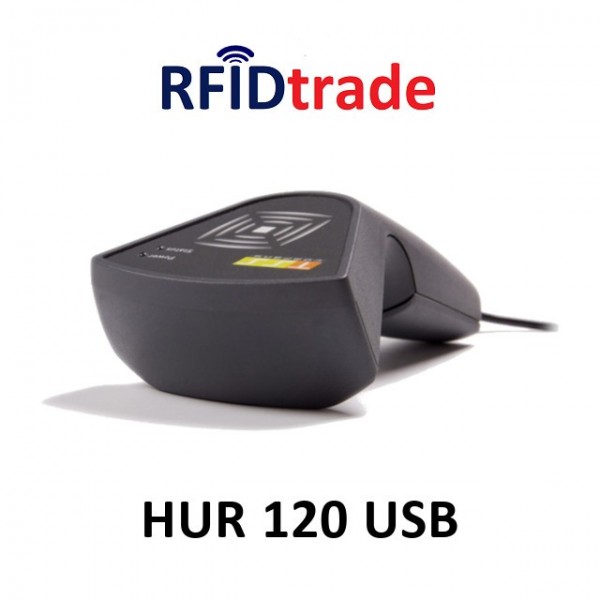

The HUR 120 USB is a portable and ergonomic UHF RFID reader, offering the easiest way to integrate UHF RFID technology into any kind of applications. This RFID reader is powered and controlled directly by the USB interface, allowing the reading of the UHF EPC Class 1 Gen2 RFID Tags.
The RFID HUR 120 USB reader has an integrated antenna for short and medium range applications. Thanks to its ergonomic shape and its portability, this UHF Reader is the perfect choice for multiple applications. Currently, the HUR 120 USB is the UHF RFID Reader with the best price on the market and a two-year warranty.
Technical features
- Air Interface Protocol: EPCglobal UHF Class 1 Gen 2
- Frequency: 865 - 868Mhz
- Number of channels: 4 channels
- Supported Region: ETSI (Europe) - ETSI EN 302 208
- RF output power: max. ERP 9dBm
- Antenna: internal circular polarized antenna, 0 dBic
- Data transmission speed: 40 kbps
- Reading distance: up to 30 cm
- Simultaneous reading: up to 50 tags/second
Interface
- USB 2.0 connectivity
- It appears as a USB serial port
- USB cable terminated with type A plug
- USB cable length: 1.6 m
- I/O: two LEDs software controlled and a button software controlled
Physical characteristics
- Power supply: 5VDC (powered via USB interface), max. 200mA
- Operating temperature: from -20°C to +55°C
- Dimensions: 180 mm L x 86 mm W x 45 mm H
- Weight: 220 g
Data sheet
- Remark
- ISO 18000-6C / EPC Gen2 V2
- Operating Temperature
- From -20°C to +55°C
- Power Supply
- 5VDC (Powered by USB interface)
- Communication protocol
- USB
- Compatibility
- Windows 7, Windows 8, Android
- Reading distance
- Up to 30 cm
