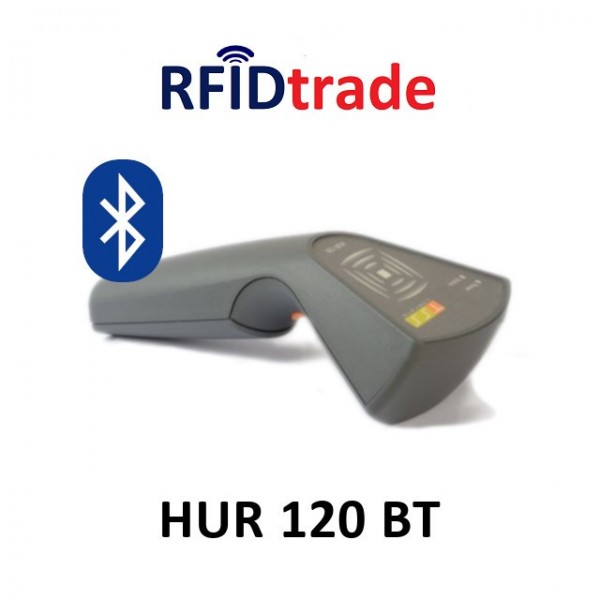

HUR 120 BT - Bluetooth RFID UHF Handheld Reader

HUR 120 BT - Bluetooth RFID UHF Handheld Reader

US$449.00
LS-HUR120BT

The HUR 120 BT handheld is a short-range UHF RFID reader that connects via Bluetooth with Android, iOS and Windows devices.

Shipping in 5 days

Technical specifications of the HUR 120 BT handheld UHF RFID reader

  • Air Interface Protocol: EPCglobal UHF Class 1 Gen 2
  • Frequency: 865 – 868Mhz
  • Number of Channels: 4 channels
  • Supported Region: ETSI (Europe) – ETSI EN 302 208
  • RF Power Output: max. 9dBm ERP
  • Antenna: Internal circular polarized antenna, 0 dBic
  • Tag Communication Rate: 40 kbps
  • Read Range: Up to 30 cm
  • Tag Read Rate: Up to 50 tags/second

Bluetooth Interface:

  • V4.0 – Dual-Mode (Classic Bluetooth and BLE)
  • Frequency: 2.402 – 2.480 GHz
  • Transmit Power: + 8 dBm (maximum)
  • Classic BT profile – SPP
  • GATT Client & Peripheral Modes

User Interface:

  • Power LED (red/orange/green)
  • Status LED (blue/amber)
  • Push button
  • Power supply: Built-in 3,7V, 2000 mAh Li-Pol Battery
  • Operating Temperature: -20°C to +55°C
  • Dimensions: 180mm L x 86mm W x 45mm H
  • Weight: 270 g

Data sheet

Remark
ISO 18000-6C / EPC Gen2 V2
Operating Temperature
From -20°C to +55°C
Power Supply
Built-in 3,7V, 2000 mAh Li-Pol Battery
Communication protocol
Wireless Bluetooth
Compatibility
Android / iOS / Windows
Reading distance
Up to 30 cm
