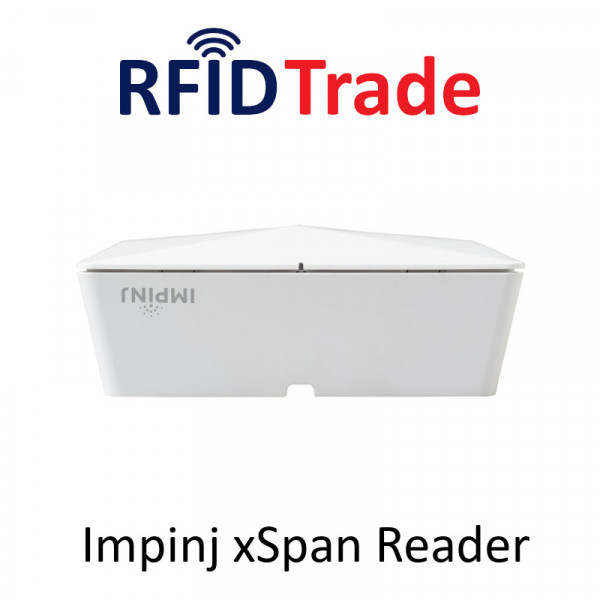

Impinj xSpan Gateway (ETSI) - RFID UHF Reader

€2289.00
IPJREVR660EU11M1

Improve item visibility throughout your facility or across your global supply chain with the Impinj xSpan Gateway. The xSpan Gateway is a fixed infrastructure RAIN RFID reader system that provides always-on monitoring and movement detection of tagged items.

Condition
New product


Please check availability with our staff

Did you find this product at a better price? Contact us

Improve item visibility throughout your facility or across your global supply chain with the Impinj Span Gateway. The xSpan Gateway is a fixed infrastructure RAIN RFID reader system that provides always-on monitoring and movement detection of tagged items.


Software

  • ItemSense
  • Speedway Connect
  • Octane Software Development Kit (SDK)
  • Octane Embedded Tool Kit (ETK)
  • EPC global Low Level Reader Protocol (LLRP) Tool Kit (LTK)

Speedway Cloud

Try Speedway Cloud, a free middleware solution for Impinj RFID Readers using Speedway Connect software. A useful tool for testing both Readers and Tags, can also be used in production.

Technical features

  • Operating Roles: 2 (inventory, direction)
  • Antenna Beams: 13
  • Frequency Range: 860 - 960 MHz
  • Maximum reception sensitivity: -84 dBm
  • Reading speed: up to 1100 tags per second
  • Operating Temperature: -20°C to 50°C
  • Protection class: IP50
  • USB Port: 1 device, 1 host
  • Managment Console Port (RS232): RJ-45
  • Factory Reset Button: yes
  • Humidity: 95% non-condensing

AC Power cable is sold separately.

Download

xSpan Datasheet

Download (293.6k)

Data sheet

Operative frequency
Global (860 – 960 MHz)
Size
H 48.0 x W 22.0 x D 9.0 cm
Protection Class
IP50
