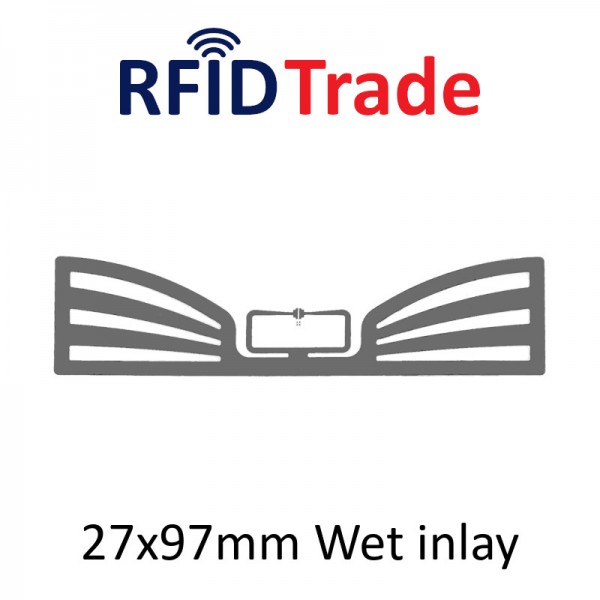

Linxens Titanium RAIN RFID UHF Wet inlay 27x97mm

€0.082
LA-27x97-UC8W

UHF inlay for those who have no space problems and need a great reading distance. Ideal for inventory, logistics, supply chain, gates, thanks to excellent reading performance.

Condition
New product
RFID Chip
EPC (Electronic Product Code)
  • 128 bit


Shipping in 2-4 weeks

The minimum purchase order quantity for the product is 10,000.

Did you find this product at a better price? Contact us

Quantity Discount

Quantity Discount Unit Price
100000 7.69 % 0.076 €

Did you find this product at a better price? Contact us

Dimensions and materials

  • Label size: 27 x 97 mm ± 0.2 mm
  • Antenna size: 24 x 94 mm ± 0.2 mm
  • Total thickness over IC: 240 μm ±10%
  • Bending diameter: > 50 mm, tension less than 10N
  • Materials: PET / aluminum
  • Adhesive: acrylic

Technical specifications

  • RAIN RFID chip:
    NXP UCODE 8 / NXP UCODE 7xm / Impinj Monza R6-P
  • Operating Frequency: 860 - 960 MHz (Global, Class1Gen2, v2.0.1 compliant)
  • ESD voltage immunity (HBM): ± 2 kV peak
  • Storage conditions: 23 ± 5°C, max. 60% rH
  • Final inspection: 100% (electrically tested), max. 3 consecutive voids, bad ones marked

Reel specifications

  • Reel core: inner diameter 76 mm
  • Reel diameter: outer diameter max. 250 mm
  • Reel winding: face out
  • Reel size 10,000

Specifics of the available UHF chips

EPC TID User
memory
NXP
UCODE 8
128 bit 96 bit --
NXP
UCODE 7xm
448 bit 96 bit 1 kbit
Impinj
Monza R6-P
up to 128 bit 96 bit up to 64 bit

Download

NXP UCODE 8/8m

RAIN RFID UHF integrated circuit NXP UCODE 8/8m datasheet

Download (276.07k)

Impinj Monza R6-P

RAIN RFID UHF integrated circuit Impinj Monza R6-P datasheet

Download (221.15k)

NXP UCODE 7xm

RAIN RFID UHF integrated circuit NXP UCODE 7xm datasheet

Download (197.23k)

Data sheet

Operative frequency
Global (860 – 960 MHz)
TID (Tag Identifier)
96 bit
Remark
ISO 18000-6C / EPC Gen2 V2
Antenna size (mm)
24 x 94 mm
Operating Temperature
From -20°C to +70°C
