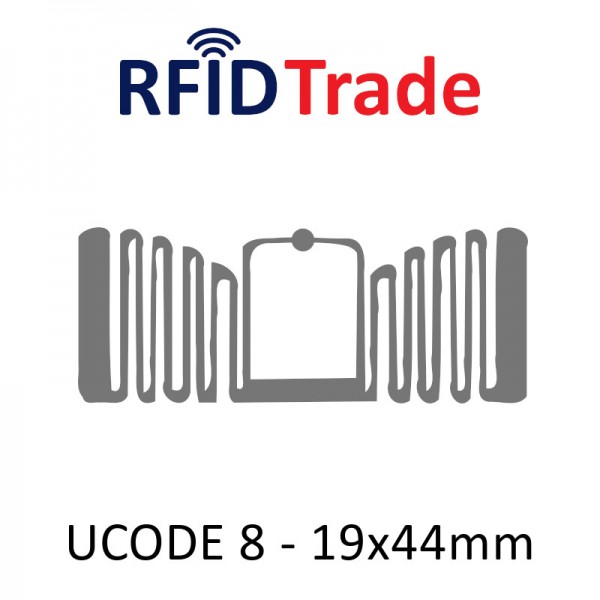

Linxens Cobalt RAIN RFID UHF Wet inlay NXP UCODE 8

€0.065
LA-19x44-W

RAIN RFID UHF label with dimensions 19 x 44 mm, adhesive, with UCODE 8 last-generation NXP chip. Ideal for inventory applications, thanks to its excellent reading performance.



Shipping in 2-4 weeks

The minimum purchase order quantity for the product is 10,000.

Did you find this product at a better price? Contact us

Quantity Discount

Quantity Discount Unit Price
100000 7.69 % 0.060 €

Did you find this product at a better price? Contact us

Dimensions and materials

  • Label size: 19 x 44 mm ± 0.2 mm
  • Antenna size: 16 x 41 mm ± 0.2 mm
  • Total thickness over IC: 240 μm ±10%
  • Bending diameter: > 50 mm, tension less than 10N
  • Materials: PET / aluminum
  • Adhesive: acrylic

Technical specifications

  • RAIN RFID chip: NXP UCODE 8
  • Operating Frequency: 860 - 960 MHz (Global, Class1Gen2, v2.0.1 compliant)
  • ESD voltage immunity (HBM): ± 2 kV peak
  • Storage conditions: 23 ± 5°C, max. 60% rH
  • Final inspection: 100% (electrically tested), max. 3 consecutive voids, bad ones marked

Reel specifications

  • Reel core: inner diameter 76 mm
  • Reel diameter: outer diameter max. 250 mm
  • Reel winding: face out
  • Reel size 10,000

Download

NXP UCODE 8/8m

RAIN RFID UHF integrated circuit NXP UCODE 8/8m datasheet

Download (276.07k)

Data sheet

Operative frequency
Global (860 – 960 MHz)
TID (Tag Identifier)
96 bit
EPC (Electronic Product Code)
128 bit
Remark
ISO 18000-6C / EPC Gen2 V2
Antenna size (mm)
16 x 41 mm
Operating Temperature
From -20°C to +70°C
