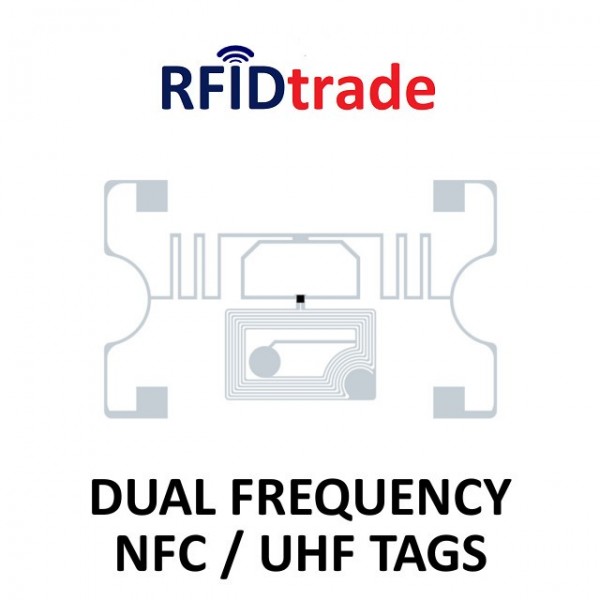

Dual Frequency NFC/UHF Wet Inlays 54x34mm

€0.590
ST-EM4423-54

This RFID Tag works both with HF 13.56 MHz and UHF 860-960 MHz technology. It can be read by an NFC smartphone and by an UHF reader.



Available for immediate dispatch

The minimum purchase order quantity for the product is 50.

Did you find this product at a better price? Contact us

Quantity Discount

Quantity Discount Unit Price
100 9.7 % 0.533 €
500 20.8 % 0.467 €
4000 41.6 % 0.345 €

Did you find this product at a better price? Contact us

This RFID Tag is equipped with the EM4423 chip that combines two functionalities on one single die: the EPC technology used for long-range application purposes, and the NFC technology used to exchange data in close proximity. Both protocols may share a common, unique ID.

Technical Specifications:

  • IC: EM4423
  • Memory: 1920 bit (204 byte) - Memory can be accessed and written using both ISO 18000-63 / Gen 2 and ISO 14443A-3 protocols
  • Frequency: HF 13.56 MHz and UHF 860-960 MHz
  • Antenna Size: 50 x 30 mm / 2.0 x 1.2 in
  • Die-Cut Size: 54 x 34 mm / 2.1 x 1.3 in
  • Web Width: 60 mm / 2.4 in
  • Operating Temperature: -40 °C to +85 °C / -40 °F to +185 °F
  • Adhesive: Acrylic, water borne adhesive
  • Shelf Life: +20 °C, 50 % RH / 68 °F, 50 % RH - minimum 2 years from the date of manufacturing

Application Areas:

  • Retail
  • Loyalty programs
  • Media & Advertising
  • Product Authentication
  • Inventory Management
  • Supply Chain Management

Downloads:

Data sheet

Operative frequency
HF (13,56 MHz) / UHF (860-960 MHz)
TID (Tag Identifier)
96 bit
Remark
ISO/IEC 14443A, ISO/IEC 18000-63, EPC Gen2 V2
Antenna size (mm)
50 x 30 mm / 2.0 x 1.2 in
