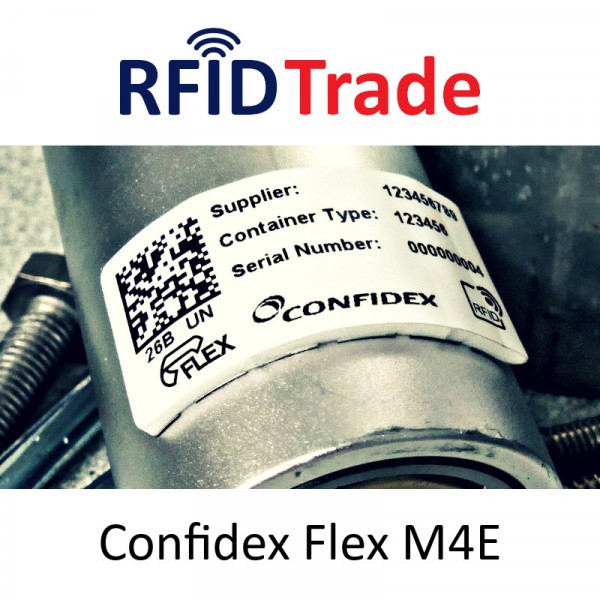

Confidex Steelwave Flex RFID UHF M4E

€1.15
3001568

Global and compact UHF RFID label optimized for metallic surfaces with flexible attachment on curved assets.

Condition
New product


In Stock

The minimum purchase order quantity for the product is 35.

Did you find this product at a better price? Contact us

Quantity Discount

Quantity Discount Unit Price
100 13.91 % 0.990 €
2000 39.22 % 0.699 €
6000 45.3 % 0.629 €

Did you find this product at a better price? Contact us

Global and compact UHF RFID label optimized for metallic surfaces with flexible attachment on curved assets.

Physical characteristics

  • Materials: Label surface: White specially coated PP for high printing quality. Resin ribbon recommended; Background adhesive: High tack adhesive with excellent adhesion to all surfaces including low surface energy plastics and painted metal.
  • Dimensions: 55(+0,5/-1,5) x 25 x 2,2 mm
  • Weight: 1 g

Resistance to temperature peaks

  • from +85 to +120°C in short periods (minutes)

Weather resistance

  • Dust-proof and resistant to immersion in water up to 1.5m for 30 minutes (IP68)

Washing resistance

  • Tolerates industrial washing with standard solvents. Washing process should be tested in final application.

Chemical resistance

No physical or performance changes in:

  • 168h Motor oil exposure ;
  • 168h Salt water (salinity 10%) exposure;
  • 2h Sulfuric acid (10%, pH 2) exposure;
  • 30min NaOH (10%, pH 13) exposure.
  • Wiping with acetone

For more information, refer to the technical data sheet.

Download

Flex Datasheet

Download (621.14k)

Data sheet

Operative frequency
Global (860 – 960 MHz)
TID (Tag Identifier)
96 bit
EPC (Electronic Product Code)
496 bit
User memory
128 bit
Operating Temperature
From -35°C to +85°C
RFID Chip
Impinj Monza4 E
Dimensions
L 55 (+0,5/-1,5) x W 25 x T 2,2 mm
