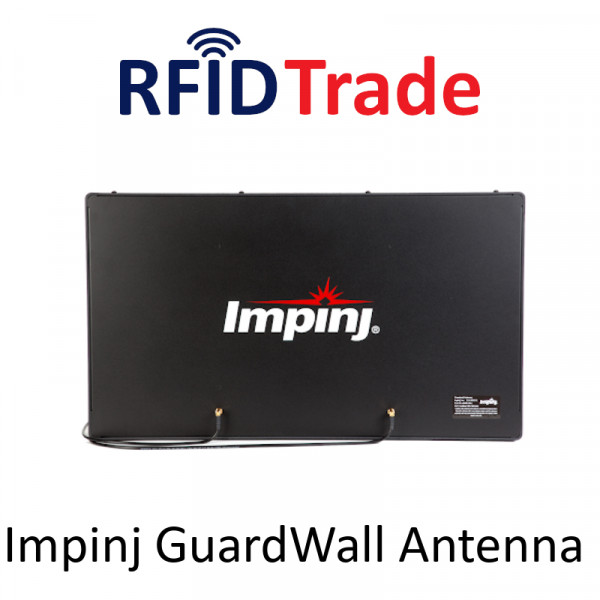

Impinj Guardwall (ETSI) - RFID UHF Antenna

€1820.00
LS-IMP-GW

The Impinj Guardwall RAIN RFID antenna, deployed in pairs, provides a tightly controlled read zone designed to integrate into conveyor systems. The antenna provides a tightly controlled read zone and intense RF field for item-level reading of packed goods, critical to penetrating deep into packed cases.



Shipping in 1 week

Did you find this product at a better price? Contact us

The Impinj Guardwall RAIN RFID antenna, deployed in pairs, provides a tightly controlled read zone designed to integrate into conveyor systems. The antenna provides a tightly controlled read zone and intense RF field for item-level reading of packed goods, critical to penetrating deep into packed cases. When used as a pair, the Guardwall antenna absorbs energy from its opposing mate so that very little passes beyond the exterior face. This configuration maximizes stray read rejection by constraining the read zone to the area within the two antennas. It also increases read reliability by maximizing the intensity within the read zone

Features

  • A pair of Guardwall antennas creates a tightly controlled read zone and intense RF field to penetrate boxes and cases of items
  • Designed to smoothly integrate into conveyor systems
  • ETSI versions available
  • Designed to be used in a pair

Technical features

  • Dimensions: 70.2 x 40.2 x 7.3 cm
  • Weight: 5 kgs
  • Frequency Range: 865 - 956 MHz
  • Far-field Gain: 6 dBi
  • Polarization: RH Circular & LH Circular (Dual Elements)
  • Temperature: 0 °C to 40 °C
  • Humidity: 5% to 95% relative, non-condensing
  • Connector: SMA Female (x2)

Download

Guardwall Datasheet

Download (469.91k)

Data sheet

Operative frequency
865 - 956 MHz
Size
L 70.2 x W 40.2 x T 7.3 cm
Protection Class
IP 51 (indoor use)
