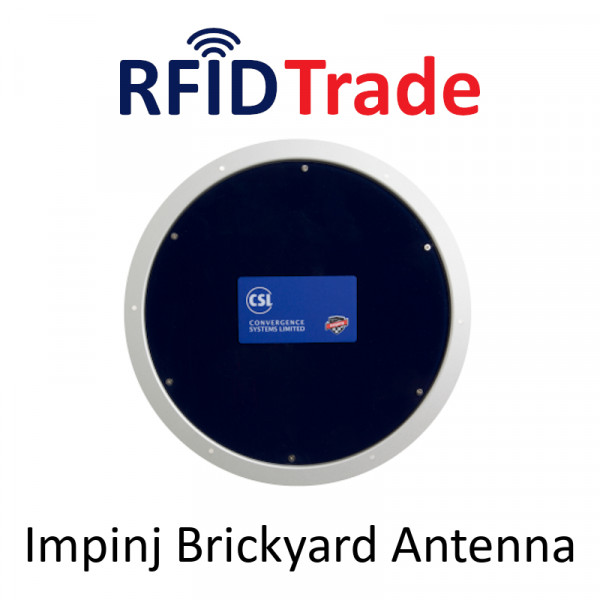

Impinj Brickyard (ETSI) - RFID UHF Antenna
The CS-777 is optimized to read near-field tags placed on products with a variety of packaging options including plastic bottles and metal foil blister packs as well as different contents such as powders, pills and even liquids.
The Brickyard antenna is designed for operation with the CSL RFID reader (CS-461), Impinj Speedway® readers as well as other “Powered by Impinj” RFID readers
The CS-777 near-field reader antenna is a key enabling technology for UHF Gen2 Item-Level Tagging systems.
The CS-777 is optimized to read near-field tags placed on products with a variety of packaging options including plastic bottles and metal foil blister packs as well as different contents such as powders, pills and even liquids
It can be used in retail and pharmaceutical applications, library systems, document control, check out counters and many other applications requiring a short and constrained read range
Features
- Near-field RFID operation to enable reading of Item Level Tags
- Work with UHF Gen2 RFID tags that incorporate an inductive near-field component including the Button™, Paperclip™ and Satellite™ tags
- High performance, low cost antenna solution
- Table top or table bottom mounting
Technical features
- Dimensions: Diameter 30 cm, Height 6 cm
- Weight: 0,9 kgs
- Frequency Range: 865 - 956 MHz
- Far-field Gain: 6 dBi max
- Polarization: Near-field magnetic coupling
- Temperature: from -20 ° C to 55° C
- Humidity: 5% to 95% relative, non-condensing
- Connector: Reverse polarized TNC male connector
- Read Range: up to 15 cm with pure near field tag, up to 40 cm with transitional (near and far field). tag
Data sheet
- Operative frequency
- 865 - 956 MHz
- Size
- D 30 H 6 cm
